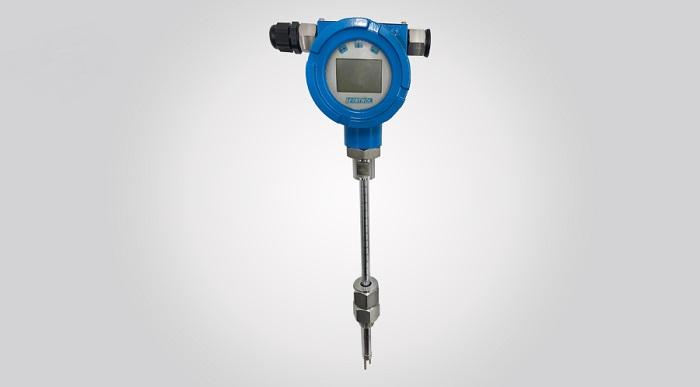

Thermal flow meters​ are widely used in industrial applications to measure the flow of gases and liquids. Their popularity comes from their ability to provide accurate mass flow measurements without requiring additional pressure or temperature compensation in many cases. However, temperature fluctuations can influence the performance of thermal flow meters. Understanding how these devices respond to temperature changes is essential for ensuring accurate readings and maintaining process reliability.

This article explores the principles of thermal flow meters, the effects of temperature variations, and strategies for mitigating their impact. Knowledge of these factors allows engineers and operators to optimize flow measurement in systems where temperature changes are common.

Understanding Thermal Flow Meters

Principle of Operation

Thermal flow meters operate by measuring the heat transfer between a heated sensor and the flowing fluid. The sensor is typically a thermistor or resistance temperature detector. As the fluid passes the sensor, it carries away heat. The rate of heat loss is directly proportional to the mass flow rate of the fluid.

Thermal flow meters can be categorized into two main types: the constant temperature and constant power methods. In the constant temperature design, the sensor is maintained at a fixed temperature above the fluid temperature. The power required to maintain this temperature provides a measure of flow. In the constant power design, a fixed amount of power is applied, and the resulting temperature drop indicates the flow rate.

Advantages of Thermal Flow Meters

These meters are lightweight, have no moving parts, and can measure low flow rates accurately. They are especially useful for applications involving clean gases, such as air, nitrogen, and oxygen. Despite these advantages, thermal flow meters are sensitive to environmental and process temperature changes. This sensitivity requires careful consideration during installation and operation.

Temperature Effects on Thermal Flow Meters

Sensor Response

Temperature fluctuations affect the sensor’s heat transfer characteristics. When the fluid temperature rises, the sensor loses heat more rapidly. If the meter is not properly compensated, this can result in an overestimation of flow. Conversely, lower fluid temperatures reduce heat loss, which may cause the meter to underreport the flow rate.

Fluid Properties

Temperature changes also affect fluid properties such as density, viscosity, and thermal conductivity. In gases, density decreases as temperature increases, which can reduce the heat transfer rate for a given flow. In liquids, viscosity changes can influence the velocity profile near the sensor. Thermal flow meters must account for these variations to maintain accuracy.

Ambient Temperature Influence

The surrounding environment can impact the meter’s electronics and sensor performance. High ambient temperatures may raise the baseline sensor temperature, while low temperatures can slow sensor response. Some thermal flow meters include temperature compensation circuits or software algorithms to correct for these effects, ensuring consistent readings despite environmental changes.

Calibration for Temperature Variations

Factory Calibration

Thermal flow meters are usually calibrated at the factory under controlled conditions. This calibration establishes a baseline relationship between sensor response and flow rate. Many meters are calibrated for a specific temperature range and gas composition. Deviations from these conditions may require field adjustments or recalibration to maintain accuracy.

Field Calibration

Field calibration accounts for the actual operating temperature of the process fluid. Engineers measure flow at known temperatures and adjust the meter output accordingly. Field calibration is particularly important for applications where temperature fluctuates frequently or exceeds the original calibration range.

Temperature Compensation

Modern thermal flow meters often include temperature compensation features. These systems measure fluid temperature alongside flow and automatically adjust the output. Compensation may be achieved through hardware, such as additional temperature sensors, or software, using correction algorithms. This capability helps maintain accuracy over a wide range of temperatures.

Installation Considerations

Avoiding Temperature Gradients

Temperature gradients along the pipe can create uneven heat transfer to the sensor. Installing thermal flow meters in regions with stable and uniform temperature helps minimize this effect. Insulation or temperature shielding may be used to protect the meter from external temperature influences.

Upstream and Downstream Pipe Lengths

Flow profile disturbances caused by bends, valves, or fittings can exacerbate the effects of temperature fluctuations. Maintaining sufficient straight pipe lengths upstream and downstream of the meter helps ensure a stable flow profile. This stability reduces measurement errors caused by temperature-induced variations in fluid velocity near the sensor.

Sensor Placement

Proper placement of the thermal sensor within the pipe is critical. It should be positioned where fluid temperature is representative of the bulk flow. Avoid placing the sensor near heat sources, cool surfaces, or locations prone to rapid temperature changes. Correct placement reduces the impact of temperature fluctuations on meter readings.

Applications with Temperature Challenges

HVAC Systems

Heating, ventilation, and air conditioning systems often experience wide temperature swings. Thermal flow meters used in these applications must be capable of compensating for both hot and cold air streams. Accurate mass flow measurement is essential for energy efficiency and system performance.

Industrial Gas Processing

In chemical or gas processing plants, gases may enter meters at varying temperatures due to compression, expansion, or chemical reactions. Thermal flow meters with temperature compensation ensure precise flow measurement, which is critical for process control and safety.

Laboratory and Research Environments

Experimental setups often involve controlled temperature changes to study reactions or processes. Thermal flow meters provide valuable data in these settings, but the instruments must be carefully calibrated and compensated to account for temperature effects.

Maintaining Accuracy Over Time

Regular Verification

Temperature effects can accumulate over time if sensors drift or electronics degrade. Periodic verification against a reference flow standard ensures the meter continues to respond correctly.

Preventive Maintenance

Cleaning sensors, checking wiring, and inspecting insulation help prevent errors caused by environmental temperature changes. Preventive maintenance ensures reliable operation in fluctuating temperature conditions.

Software Updates

Some thermal flow meters rely on firmware or software for temperature compensation. Keeping these systems updated ensures continued accuracy and accounts for improvements in compensation algorithms.

Conclusion

Thermal flow meters are highly effective instruments for measuring gas and liquid flow. However, temperature fluctuations can affect sensor response, fluid properties, and ambient conditions, potentially impacting accuracy. Understanding how thermal flow meters respond to these variations is essential for proper installation, calibration, and operation.

Temperature compensation, proper sensor placement, and careful calibration help mitigate these effects. By following best practices and maintaining the meters regularly, operators can achieve reliable and accurate flow measurement even in applications with significant temperature changes. Thermal flow meters remain a valuable tool in industries ranging from HVAC to chemical processing, providing precise mass flow data when temperature effects are properly managed.
